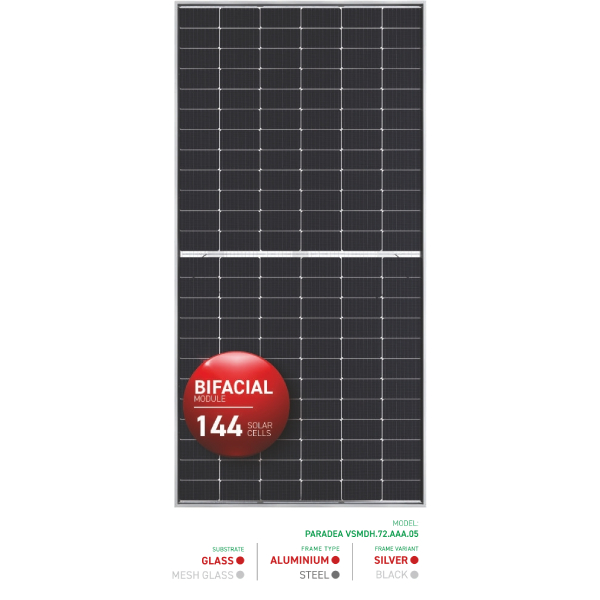

PVEL TOP PERFORMER MODEL
Benchmarked for highest standards of long-term module
reliability and performance
OPTIMIZED FRAME DESIGN
Anodized aluminium frame with twin wall structure for higher strength
PRELIABILITY IS IMPROVED
Higher corrosion resistance to severe conditions of sand dust, concentrated ammonia and salt mist
Low risk of module warping & micro cracking
LOWER LCOE
Lower balance of systems cost
Improves value proposition of the product with competitive
SUPERIOR HAIL TEST PERFORMANCE
45mm hail test passed from third party laboratory with impact velocity up to 27m/s
The World’s First Truly Made In India Solar
NOSKD, NO CKDl, Software and hardware made in India, Both Hindi & English language installation guides available on Youtube
Best for PM SuryaGhar Muft Bijli Yojana
Class 1 Supplier, Subsidy already being availed through
this inverter

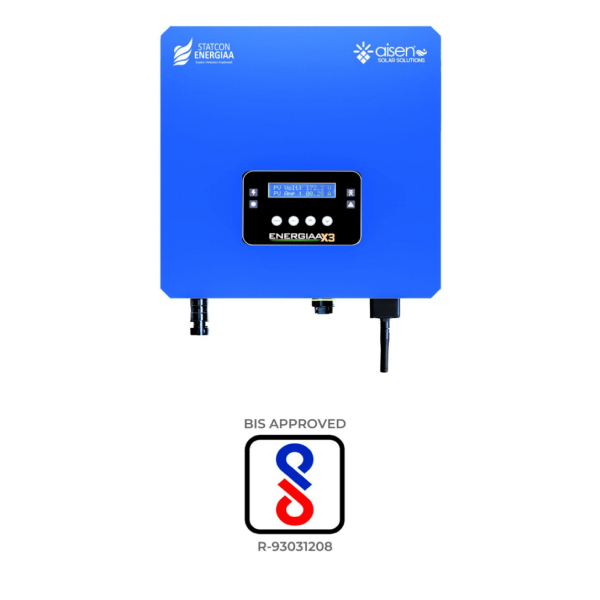

8 Years of Warranty in India
Product can be repaired and replaced in India Itself, No more long waiting period for foreign brand replacement
Excellent performance for monthly bill
savings
Advanced MPPT Algorithm for efficiency >99.5%, UNITY power factor with 20% overloading, WiFi monitoring data stored in Indian Servers
1NOS

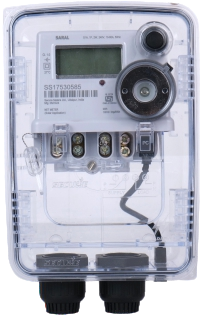

Secure make SARAL 100 meter for Net Metering, 10 year warranty
1NOS

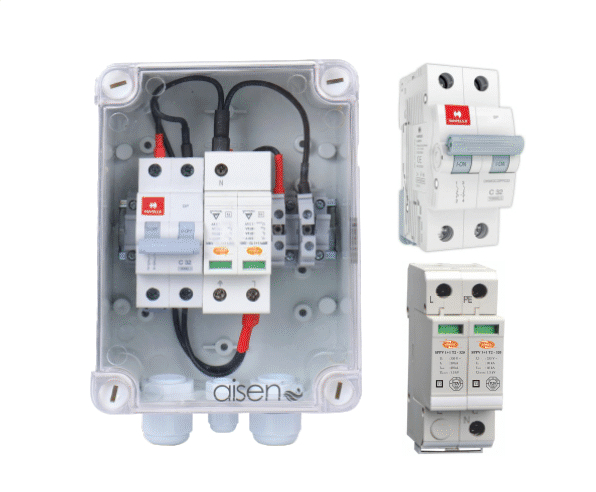

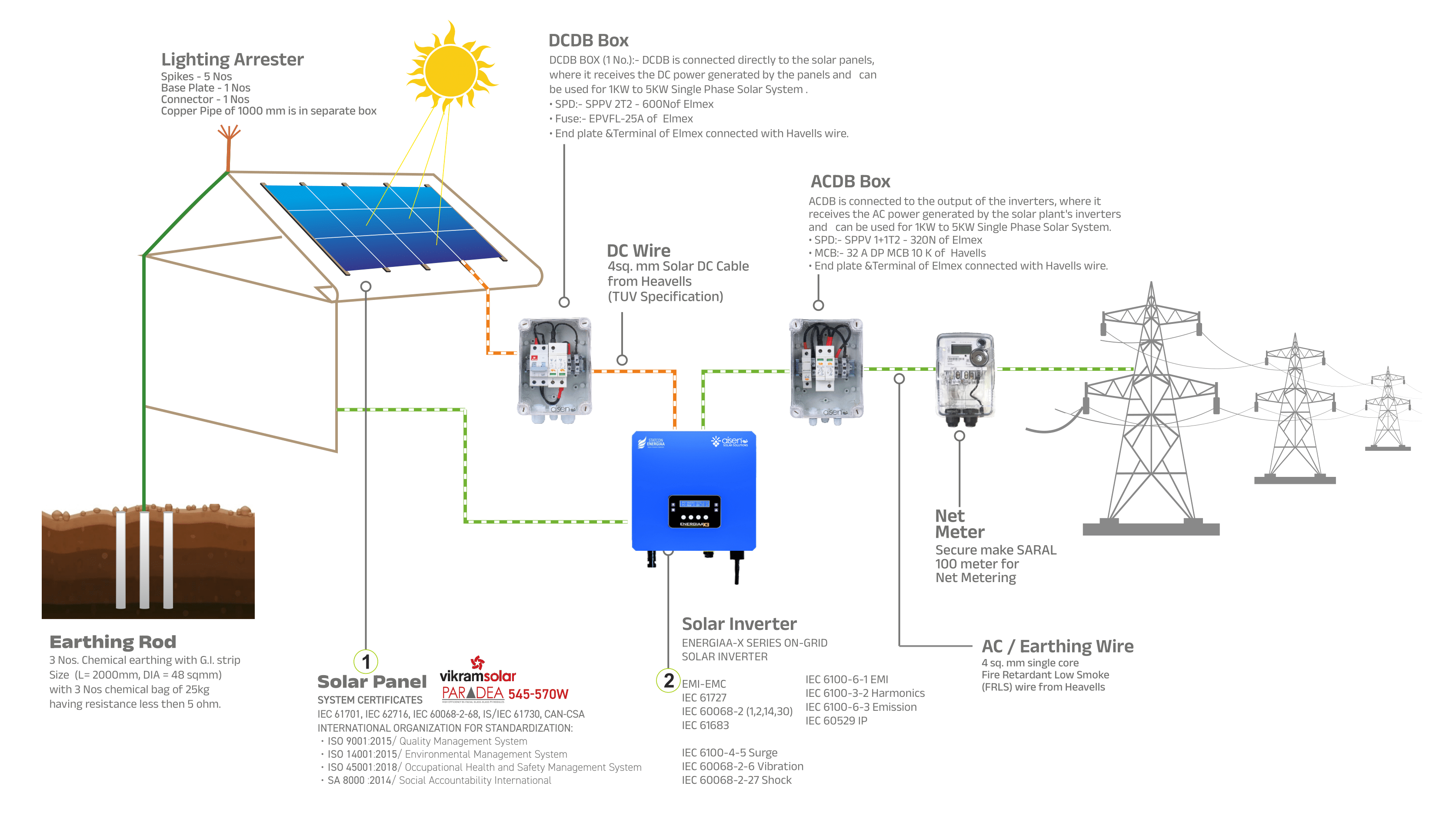

ACDB is connected to the output of the inverters, where it receives the AC power generated by the solar plant's inverters and can be used for 1KW to 5KW Single Phase Solar System. • SPD:- SPPV 1+1T2 - 320N of Elmex
• MCB:- 32 A DP MCB 10 K of Havells
1NOS

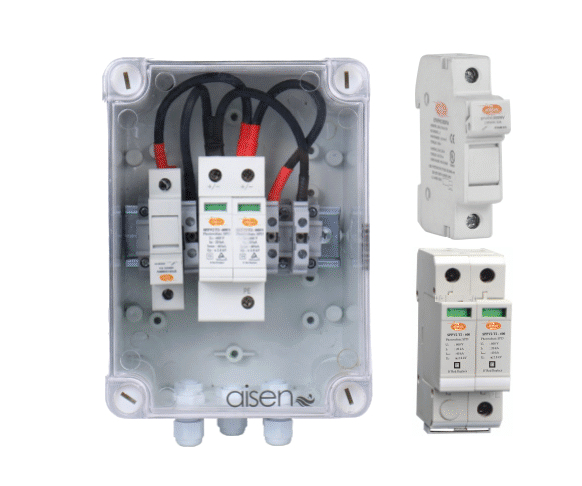

DCDB is connected directly to the solar panels, where it receives the DC power generated by the panels and can be used for 1KW to 5KW Single Phase Solar System .
• SPD:- SPPV 2T2 - 600Nof Elmex
• Fuse:- EPVFL-25A of Elmex

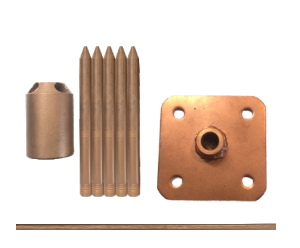

Spikes - 5 Nos Base Plate - 1 Nos Connector - 1 Nos Copper Rod - 1000 mm, 1 Nos
30 Meter
4sq. mm Solar DC Cable from Havells (TUV Specification)
50 Meter
4 sq. mm single core Fire Retardant Low Smoke (FRLS) wire from Havells
6 NOS

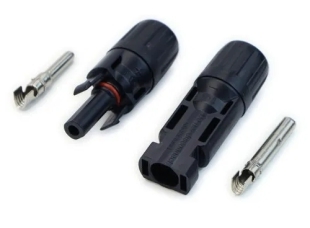

Made by Elmex
Rated voltage - 1500 V DC
Degree of Protection - IP 68
Rated Current - 25A (2.5 sqmm)
30A (4.0 sqmm, 6.0 sqmm)
3 NOS

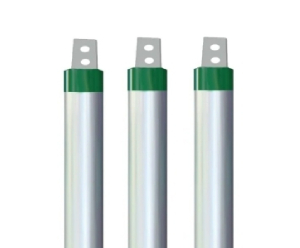

Chemical earthing with G.I. strip Size (L= 2000mm, DIA = 48 sqmm) with 3 Nos chemical bag of 25kg having resistance less then 5 ohm.
40 NOS
ISI Standard 300 MM
60 NOS

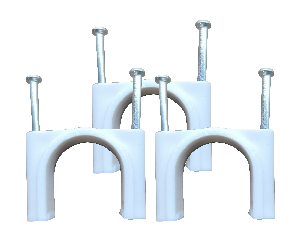

PVC Clamps of ISI Standards 32 mm x 4.6 mm
